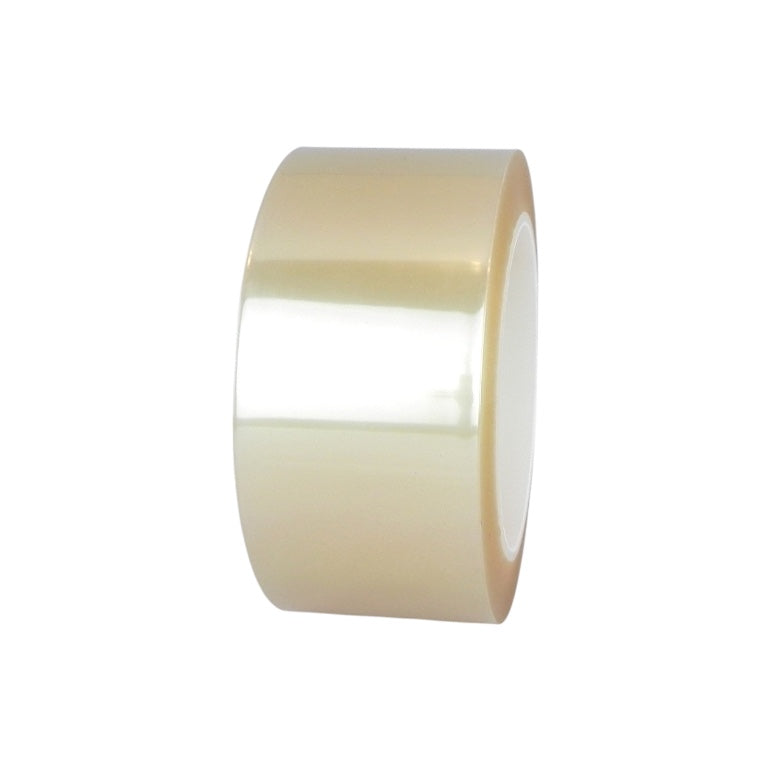

GGR Supplies MYP-25CS Polyester Tape – Clear, 2.5 mil, Silicone Adhesive 72 YD (66M)

• 🧲 Durable Polyester Film Construction – 1 mil thick, offers excellent mechanical strength and thermal stability.

• 🛡️ Cured Electrical-Grade Silicone Adhesive – 1.5 mil coating offers 27 oz/in adhesion and leaves no residue after removal.

• 📏 Exceptional Thermal Resistance – Fully stable electrically and mechanically at temperatures up to 350°F; performs down to -100°F.

• ⚡ Superior Dielectric Strength – 5.5 kV dielectric rating for reliable electrical insulation in high-temperature conditions.

• 🔥 Chemical and Solvent Resistance – Withstands acids, oils, abrasives, water immersion, staining, and aging.

• 🎯 Applications:

  • Splicing Silicone-Coated Papers and Films

  • Outer Wrapping of Coils, Capacitors, Motors, and Transformers

  • Masking for Electroplating, Anodizing, and PCB Manufacturing

• 🏠 UL 510 Class B Certified – Ensures compliance with high electrical and safety standards for industrial applications.

• 📦 Convenient 3” Plastic Core – Designed for easy use in industrial settings and automated processes.

MYP-25CS Polyester Tape is a high-performance clear polyester film tape designed for high-temperature masking, splicing, and electrical insulation applications. Constructed with a 1 mil polyester backing and a 1.5 mil electrical-grade silicone adhesive, MYP-25CS is engineered for thermal stability up to 350°F, offering excellent electrical and mechanical reliability even in extreme environments.

The cured silicone adhesive provides maximum chemical resistance and leaves no adhesive residue upon removal, making it ideal for splicing silicone-coated papers and films, outer wrapping of coils, capacitors, motors, and transformers, and masking in electroplating, anodizing, and PCB manufacturing.

With a total thickness of 2.5 mils, 27 oz/in adhesion to SST, and 5.5 kV dielectric strength, MYP-25CS meets UL 510 Class B (130°C / 266°F) standards for electrical insulation performance.
