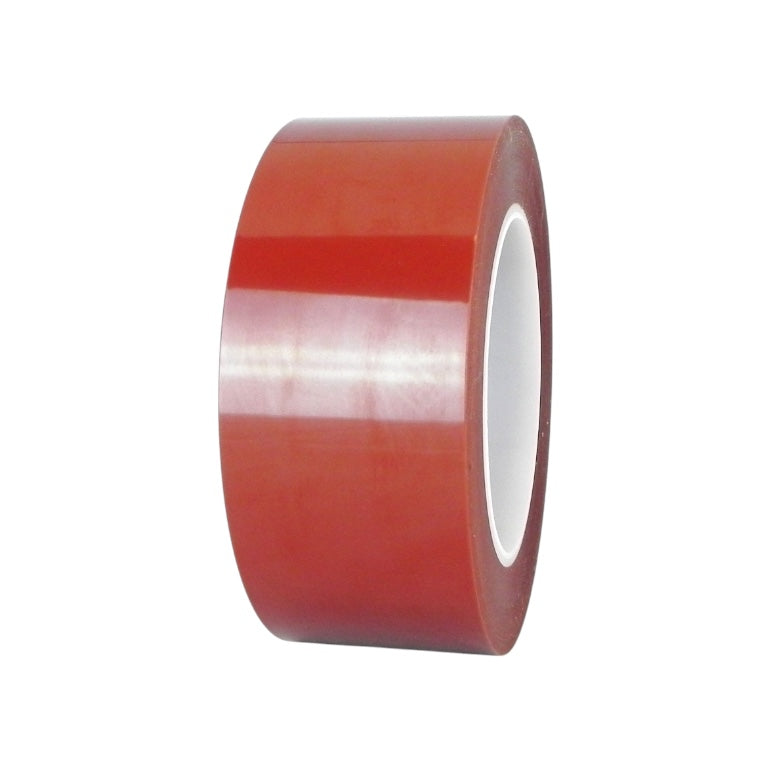

GGR Supplies MYP-36OS Circuit Board Polyester Tape – Brown/Rust, 3.8 mil, Silicone Adhesive 72 YD (66M)

• 🧲 Residue-Free Silicone Adhesive – Cured 1.8 mil silicone adhesive leaves no residue after removal, ideal for sensitive and critical operations.

• 🛡️ Exceptional Chemical Resistance – Withstands acids, oils, solvents, photo-processing chemicals, and water immersion.

• 🔥 Extreme Temperature Stability – Reliable performance from -100ºF to 350ºF, with short-term resistance up to 437°F (225°C).

• 📏 Superior Strength – 44 lbs/in tensile strength and 100% elongation provide durability and flexibility in high-stress environments.

• 🎯 Applications:

  • Photographic film-to-leader bonding in automated processing

  • Powder coating and high-temp masking

  • Splicing of siliconized paper, films, and non-wovens

  • Masking seams in metal bonding processes

• ⚡ Dielectric Strength: 6.0 kV – Ideal for use where electrical insulation is required.

• 🏠 3” Plastic Core – Compatible with standard industrial dispensing equipment.

MYP-36OS Polyester Tape is a high-performance brown/rust-colored polyester tape specifically designed for clean splicing, high-temp masking, and leader card bonding. Featuring a 2 mil polyester film backing and a 1.8 mil residue-free silicone adhesive, this tape delivers exceptional adhesion, superior chemical resistance, and clean removability, even in demanding thermal and chemical environments.

It is widely recognized as one of the cleanest and strongest splicing tapes available, used extensively for photo film-to-leader bonding, powder coating masking, and splicing siliconized papers, films, and non-woven materials. With a total thickness of 3.8 mils, 42 oz/in peel adhesion, 44 lbs/in tensile strength, and 6.0 kV dielectric strength, it operates reliably between -100ºF and 350ºF, and withstands up to 437°F (225°C) for 45 minutes.
