GGR Supplies REF-7 Reflective Tape – 30-Foot Rolls

$9.49
$9.49

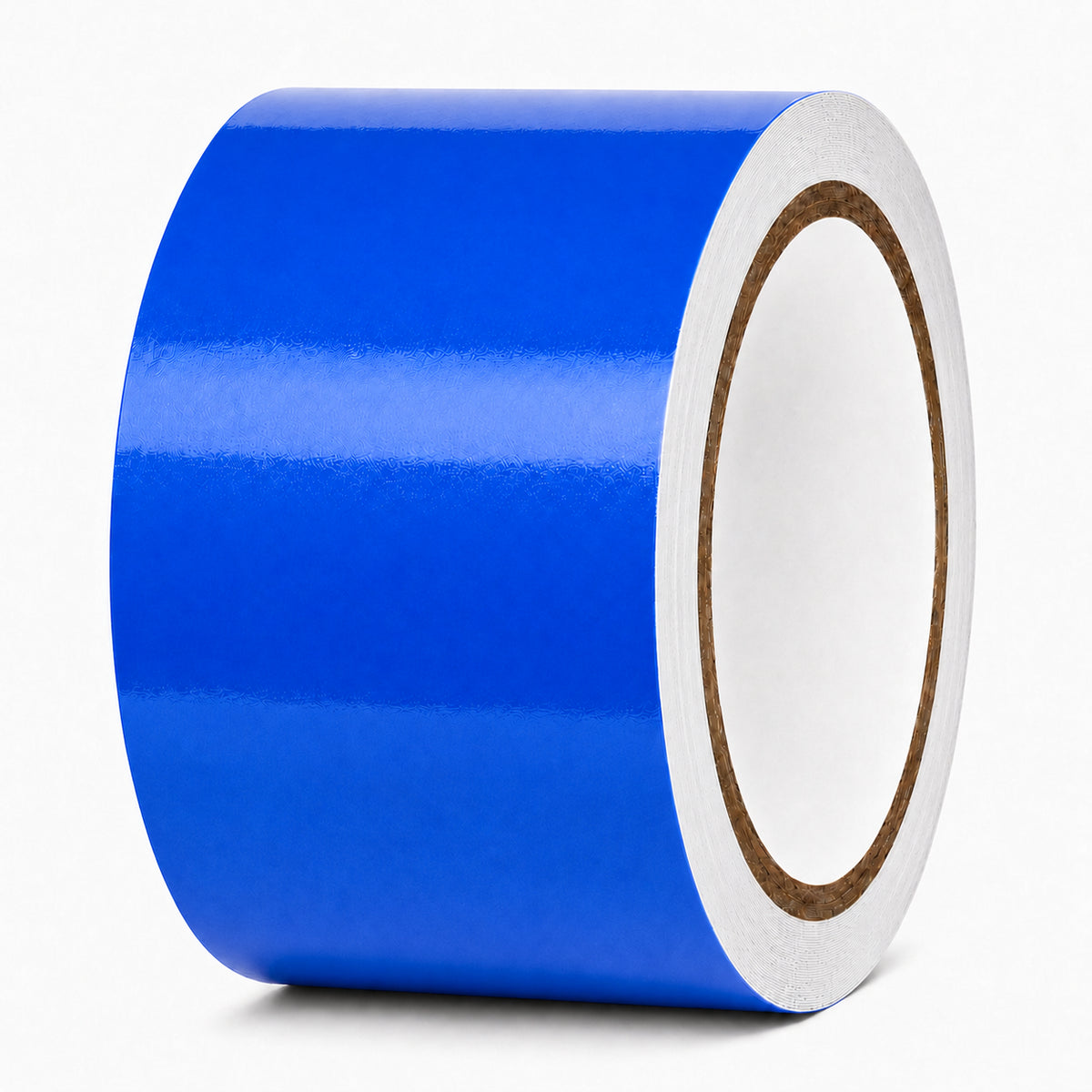

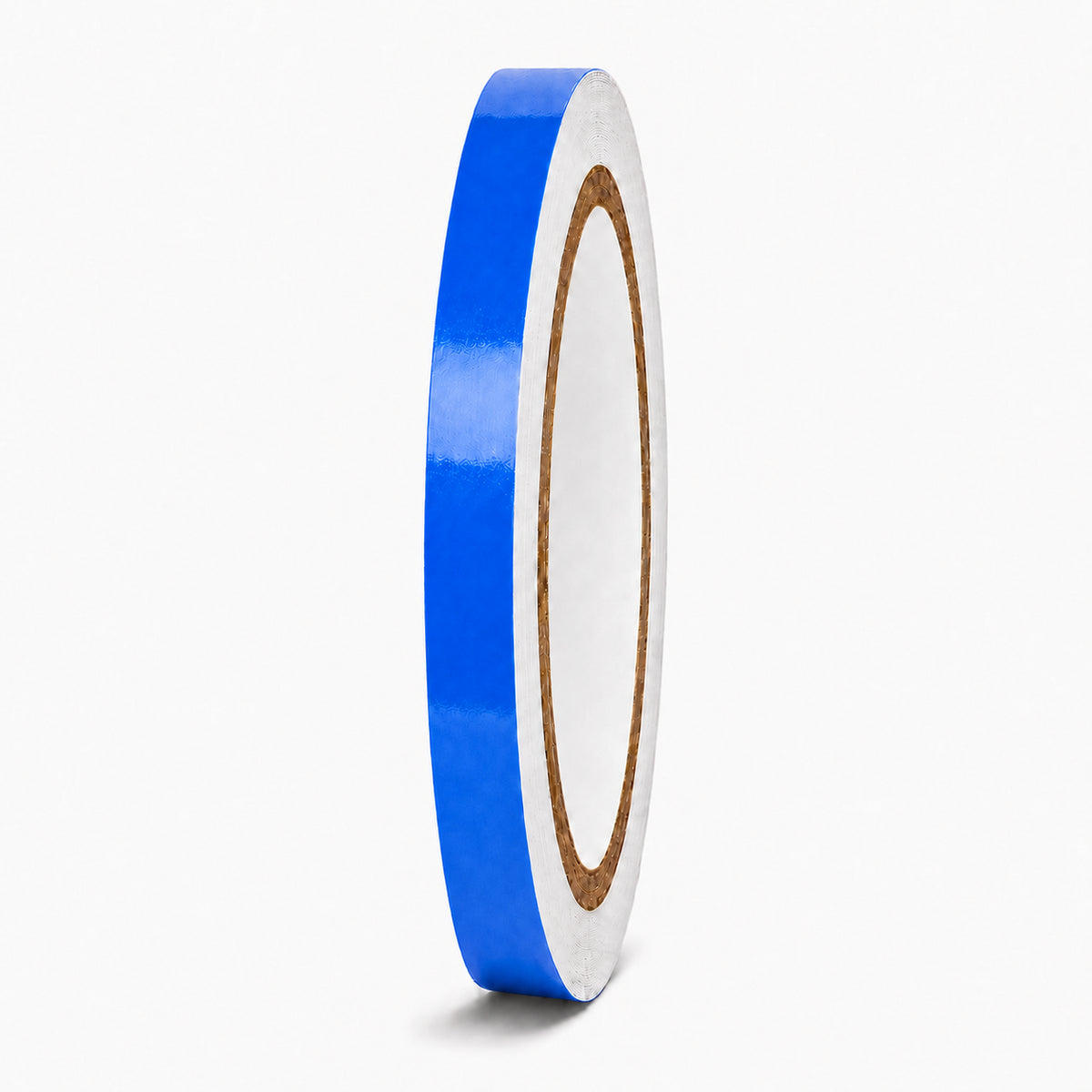

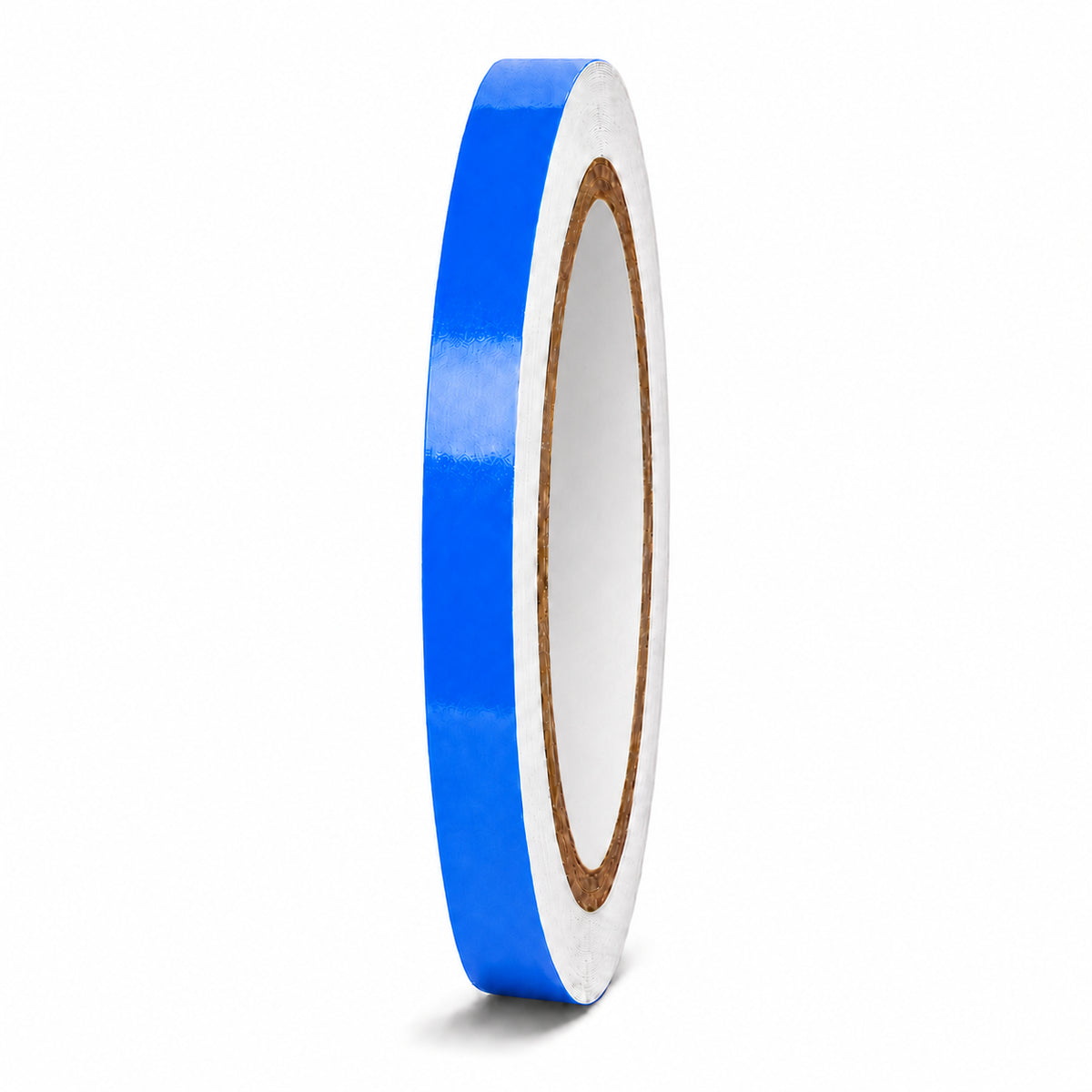

Blue
Green

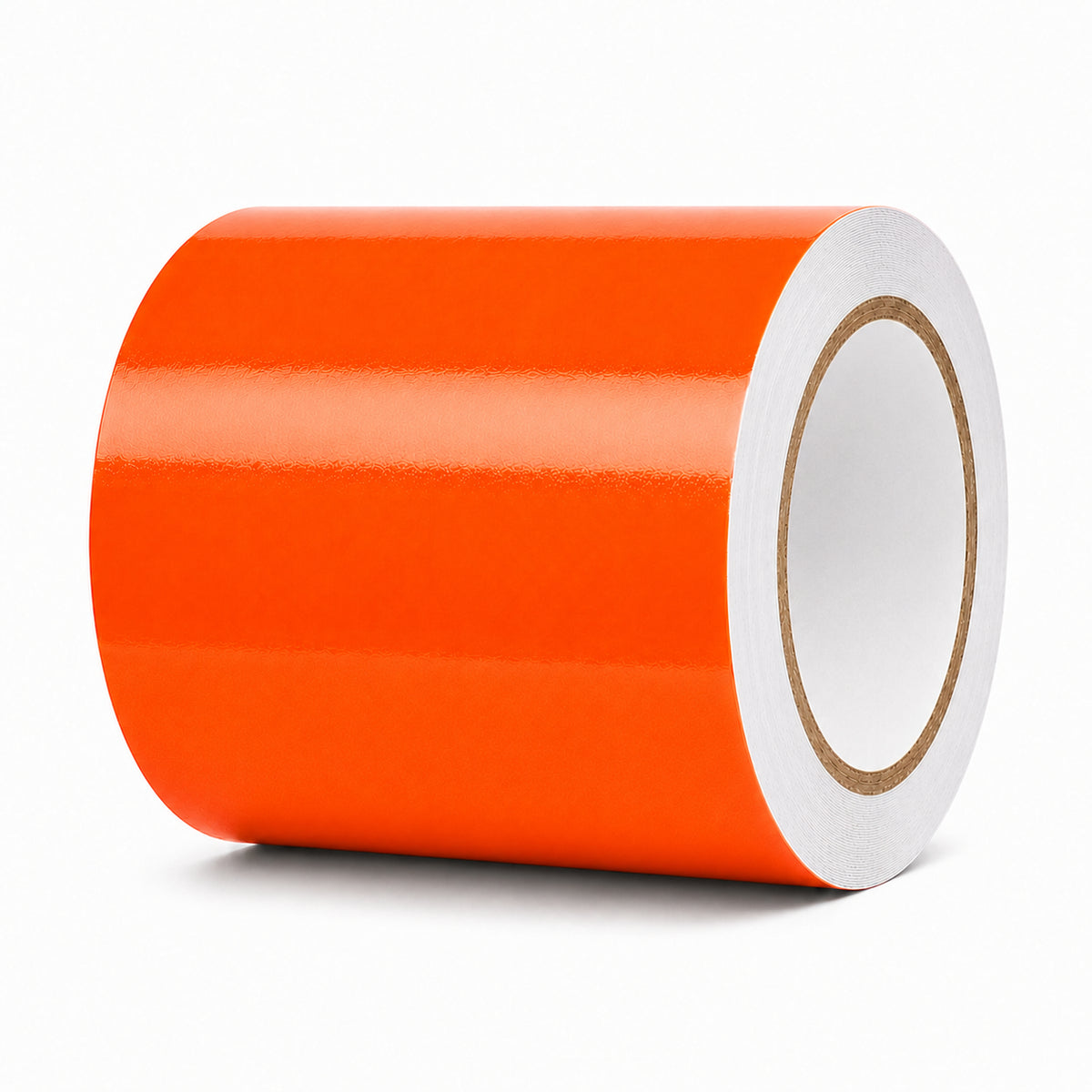

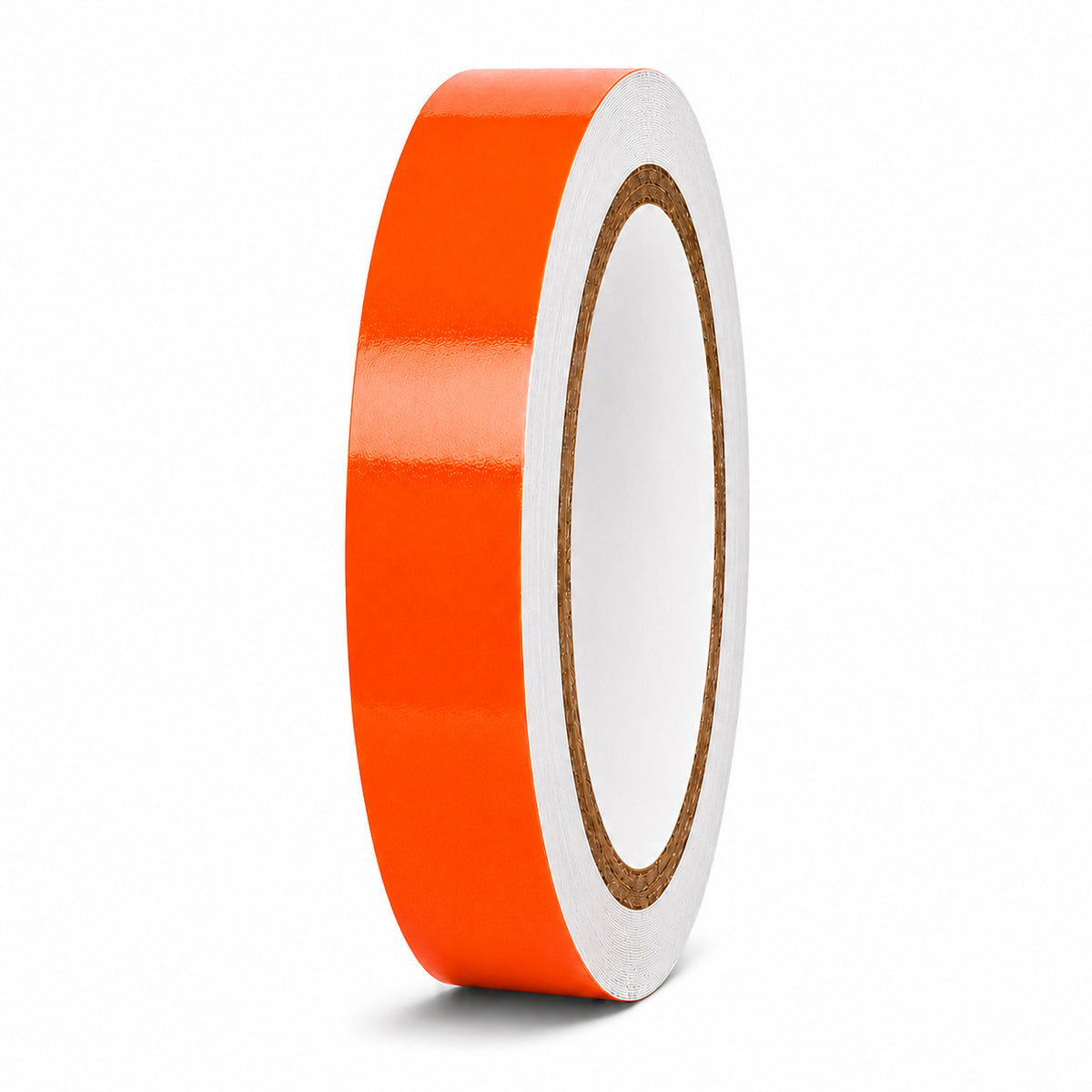

Orange
Rainbow

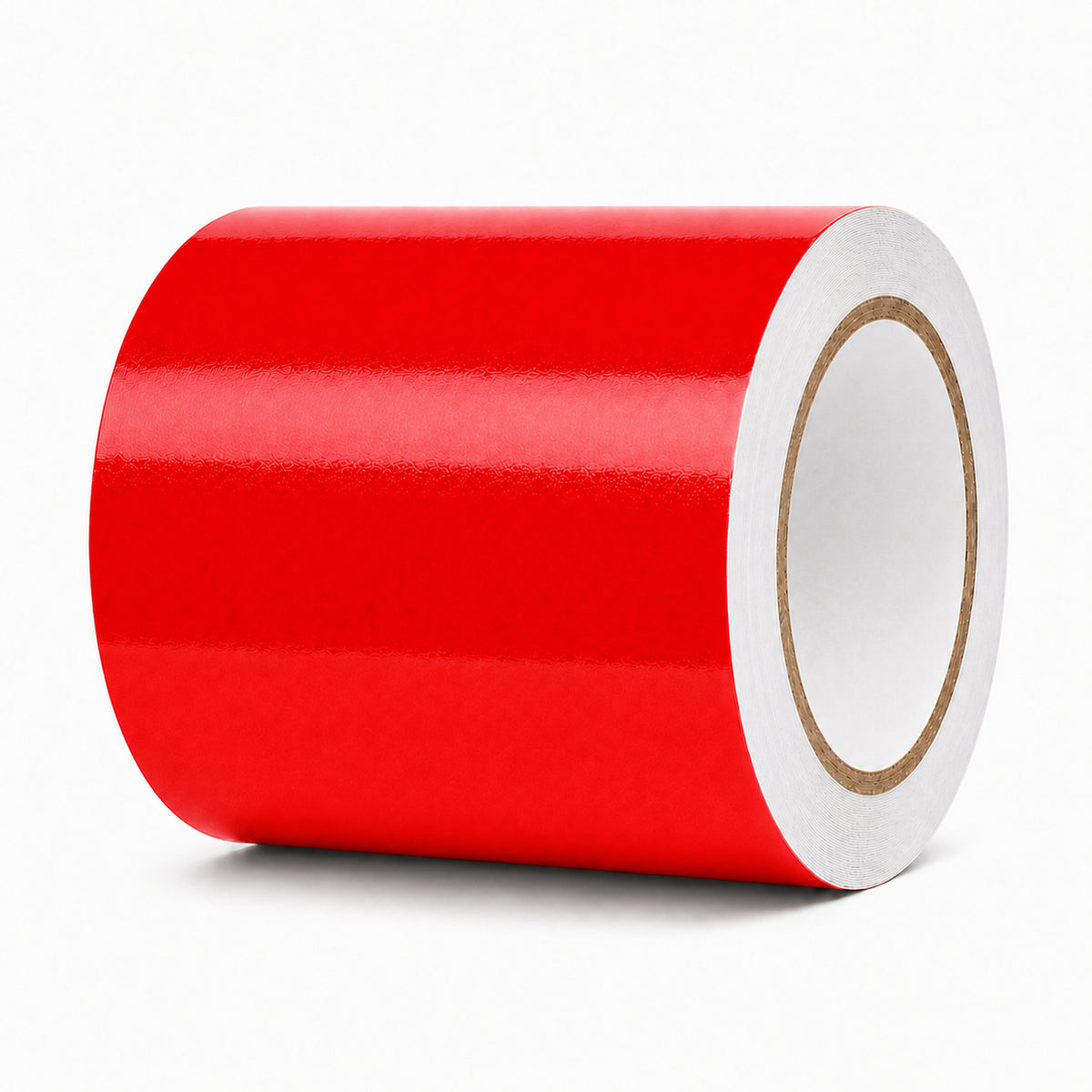

Red

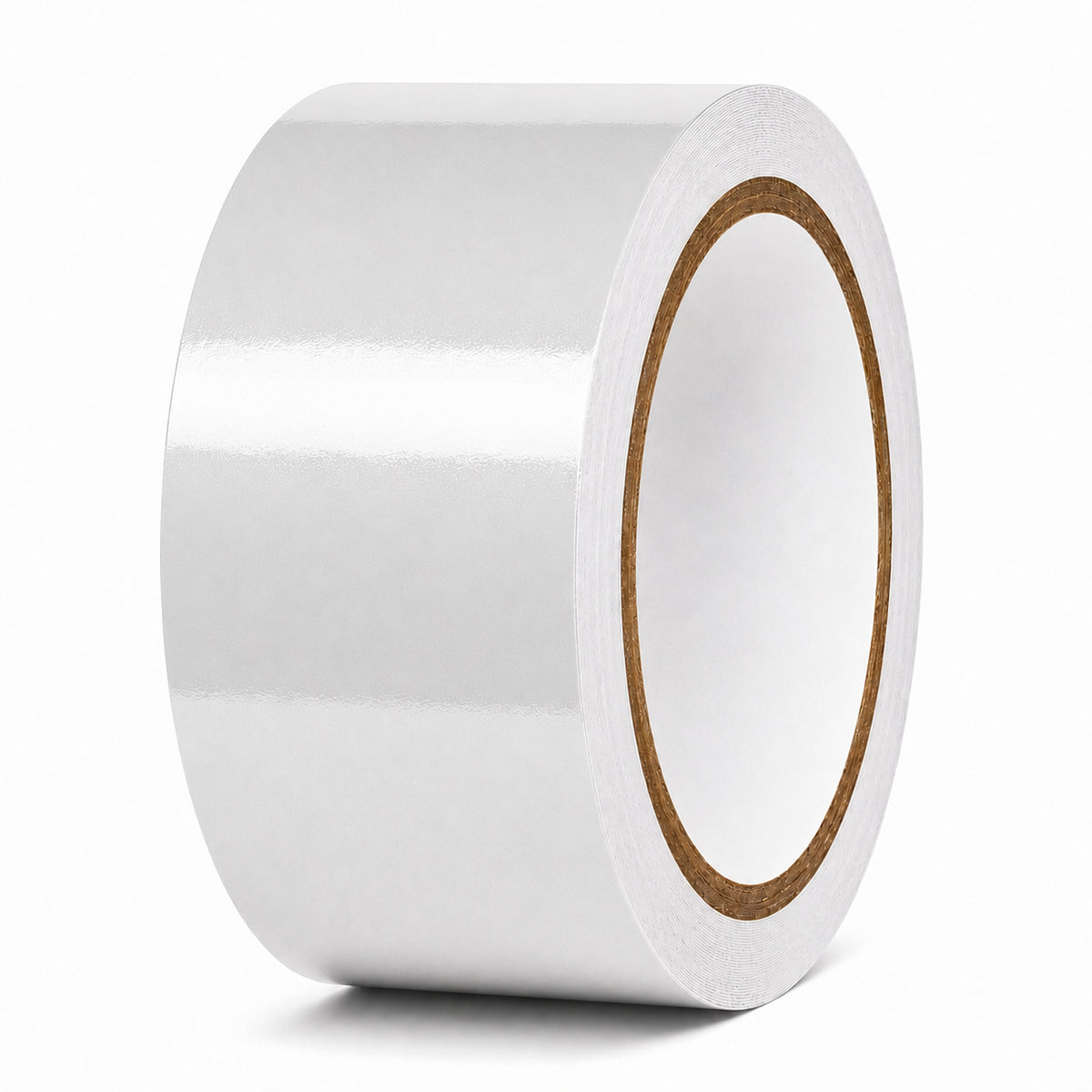

Silver/White

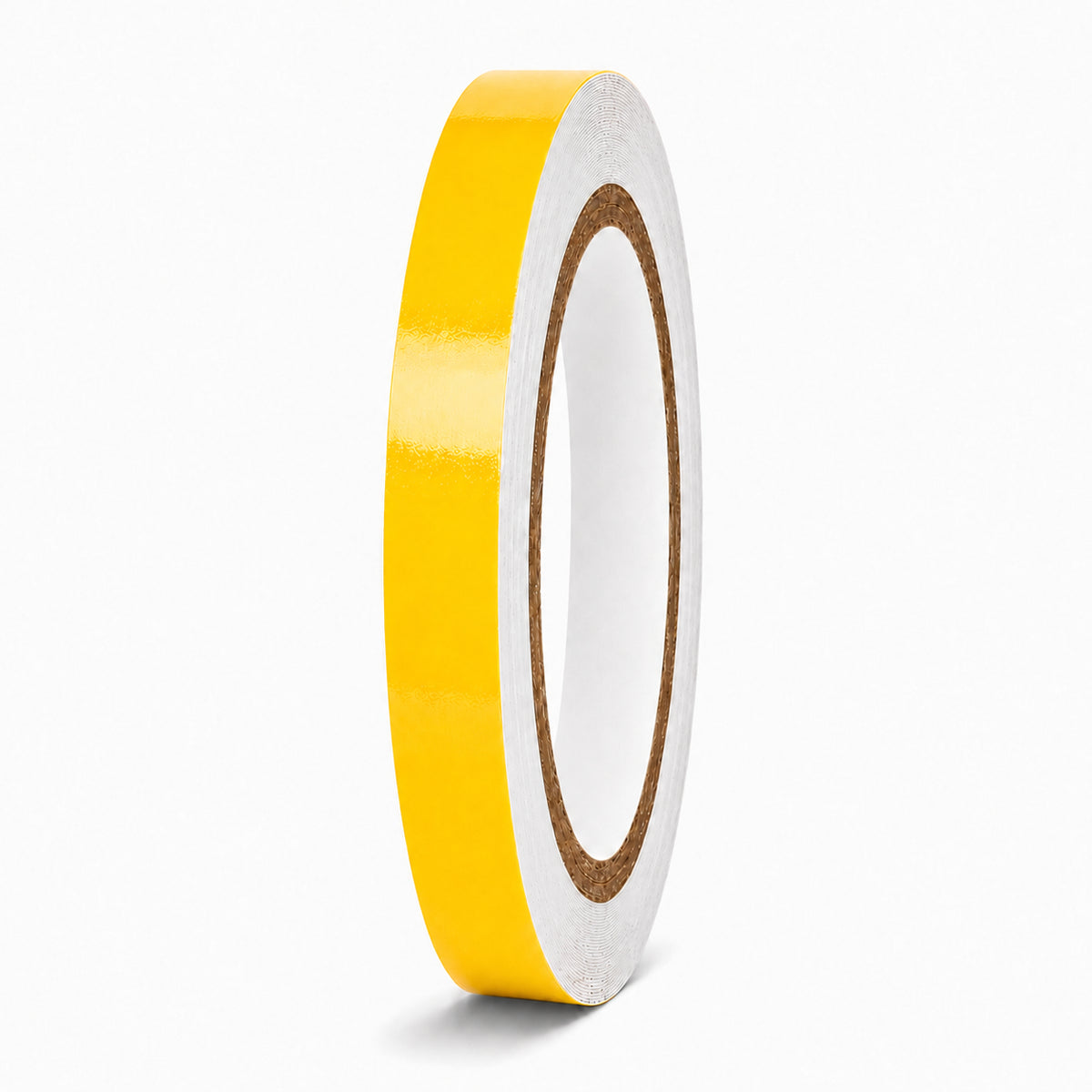

Yellow
Ask a question Share
Product description

Choose GGR Supplies REF-7 engineering-grade reflective tape in 30-foot rolls. Its enclosed-lens retroreflective film and permanent acrylic adhesive are designed for flat-surface marking and signage applications. Select the width and color that fit your project before ordering.

Choose your reflective tape

  • Roll length: 30 feet.
  • Colors: silver/white, yellow, red, green, orange and blue; see the variant selector for available combinations.
  • Construction: 5.5 mil film and adhesive.
  • Surface: flat surfaces; not recommended for unpainted stainless steel.

Questions before you order

Does reflective tape glow by itself? Reflective tape returns light toward its source. For a glow-in-the-dark option, compare PGD-6 photoluminescent tape.

Are the widths exact inch measurements? This listing uses nominal inch sizes with tape-industry metric widths. Check the size selector and the sizing note below.

Browse our reflective and high-visibility tape collection or contact GGR Supplies with application questions.

Detailed product specifications

T.R.U. REF-7 Color Engineering Grade Reflective Tape

Product Description
T.R.U. REF-7 Reflective Tape is 5.5 mils thick with Enclosed Lens Retroreflective Urethane Film coated with a permanent Acrylic Adhesive. Application surface should be flat (not recommended for unpainted stainless steel surface). Product may be screen printed, guillotine cut, die-cut, or thermal kiss-cut. Meets or exceeds requirements of Federal Specification LS-300C (Reflectivity 1, Class 1), FP-85 (Type II), and ASTM D4956-94 (Type 1).

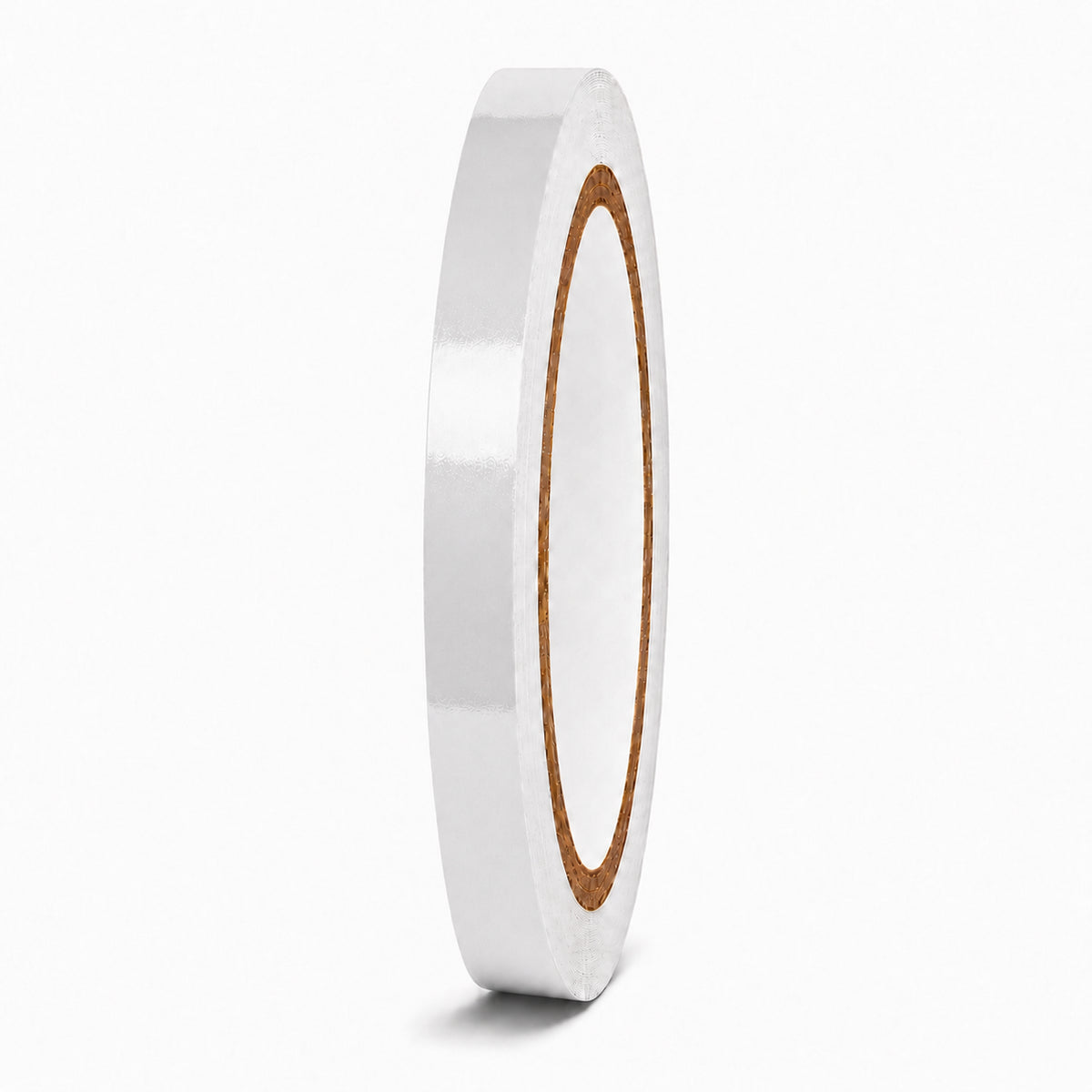

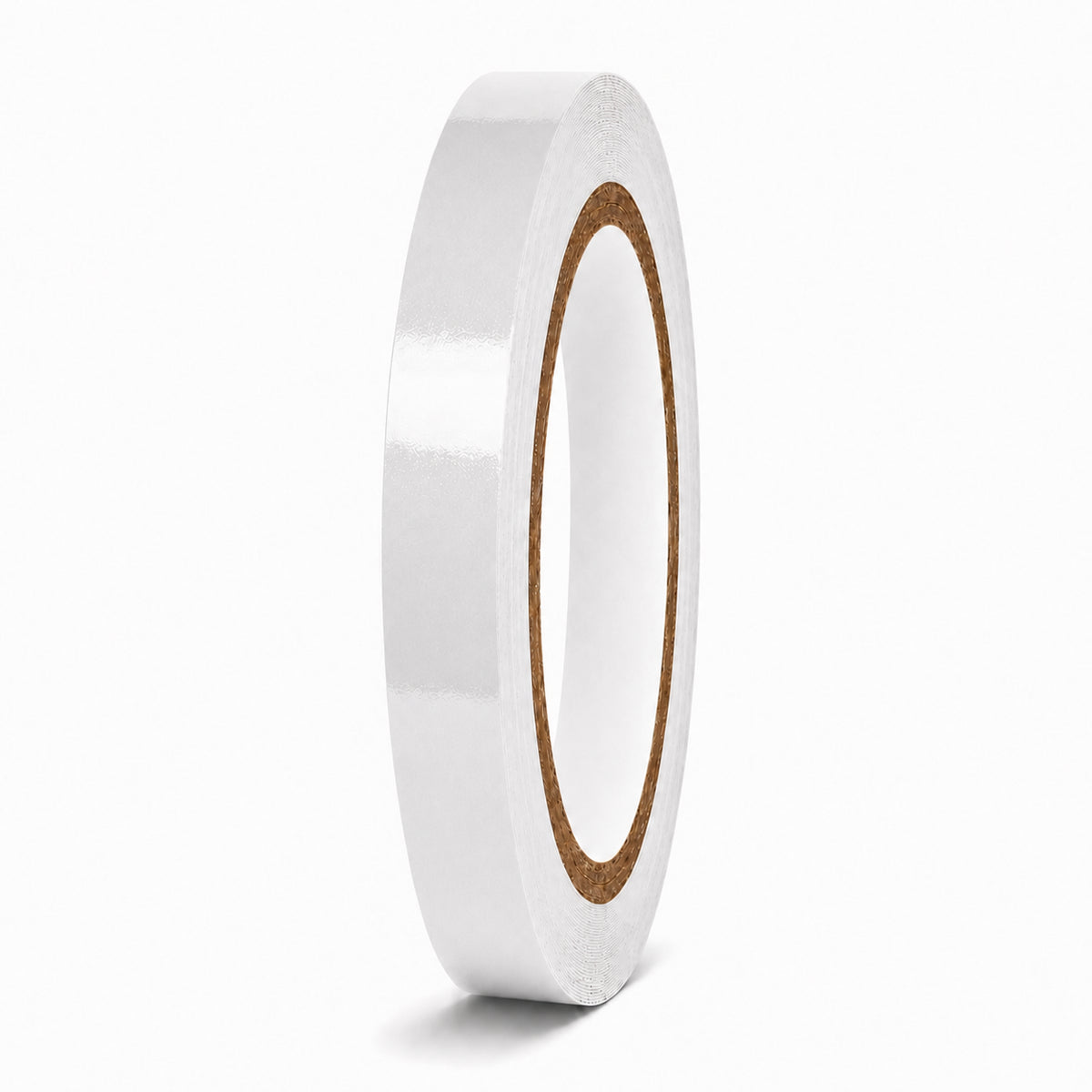

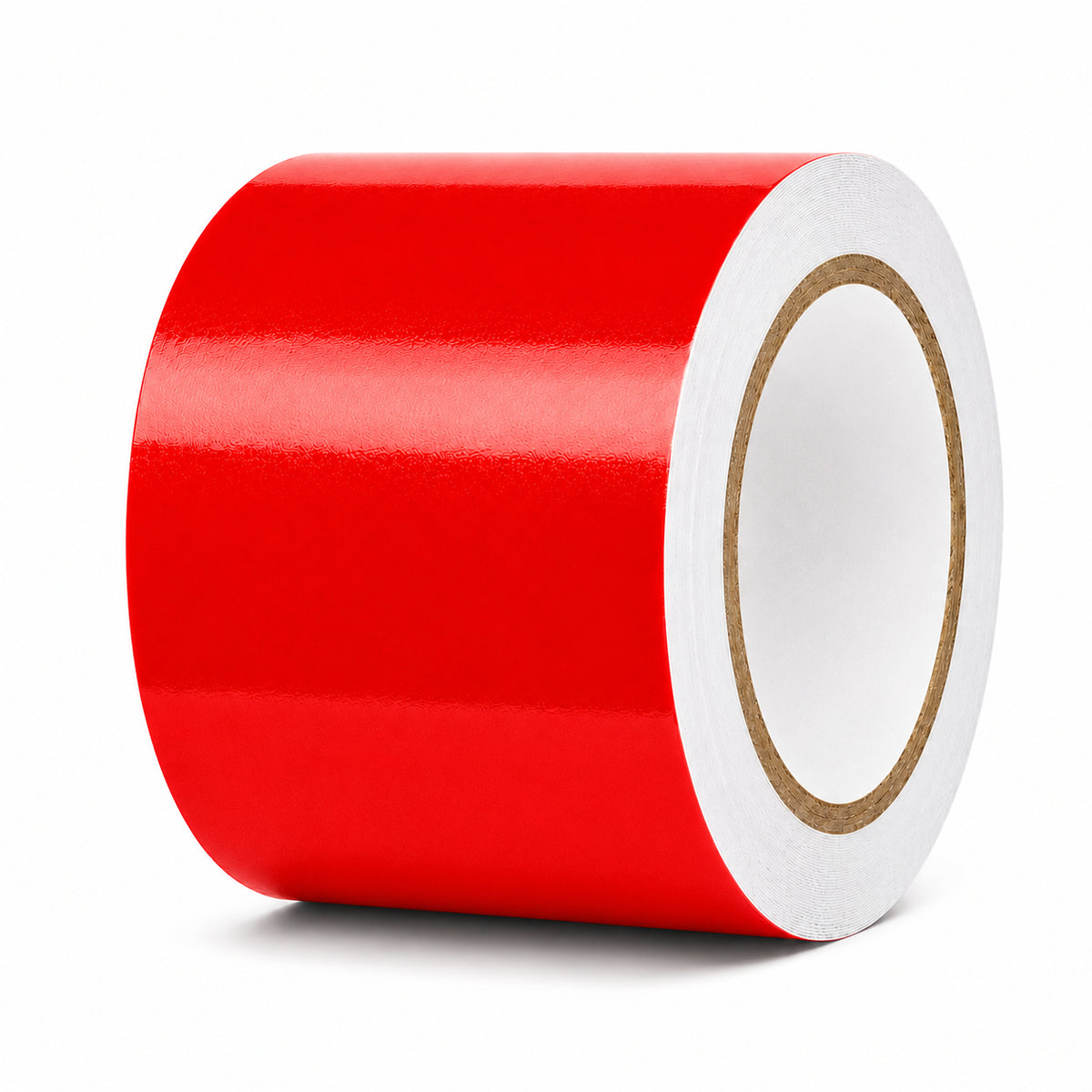

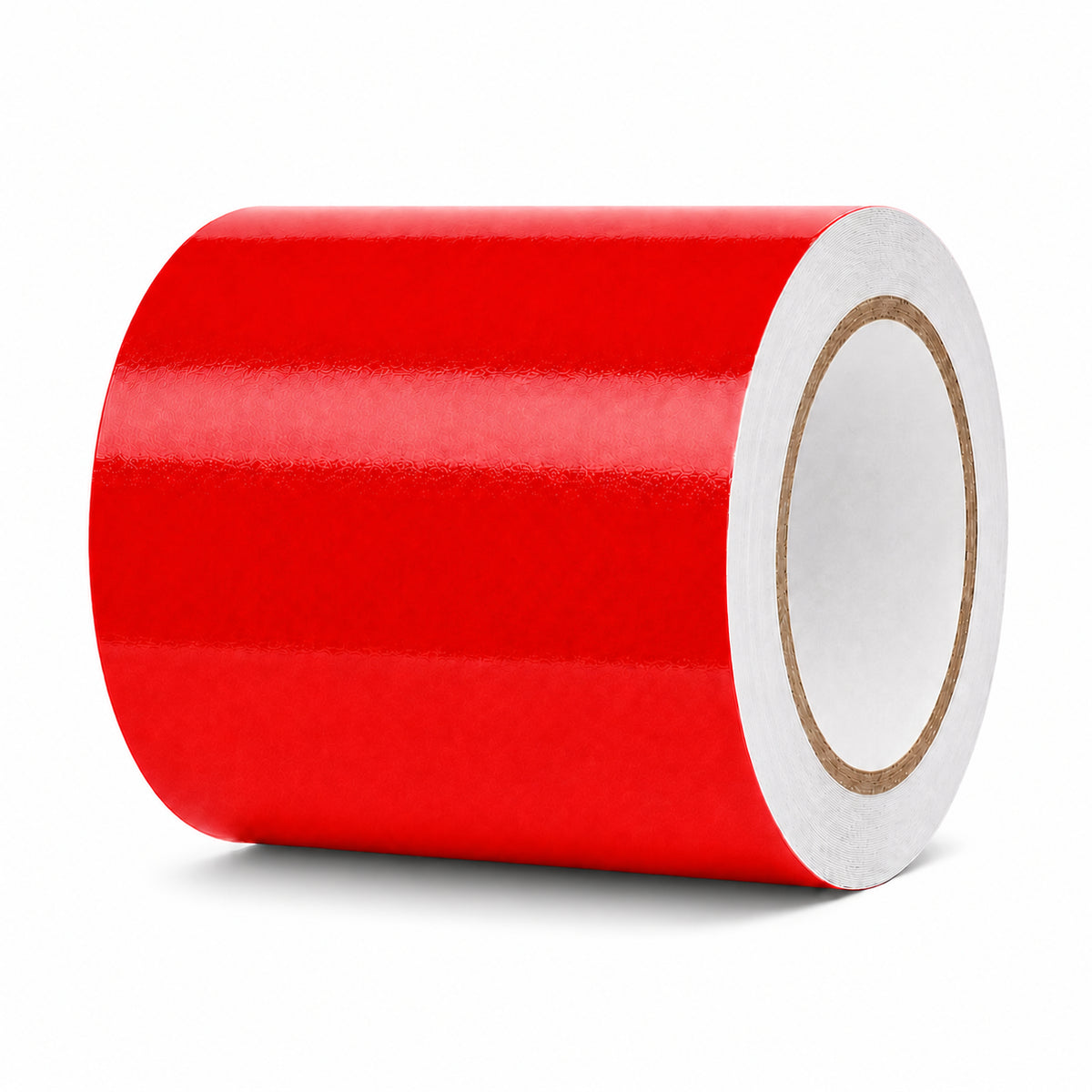

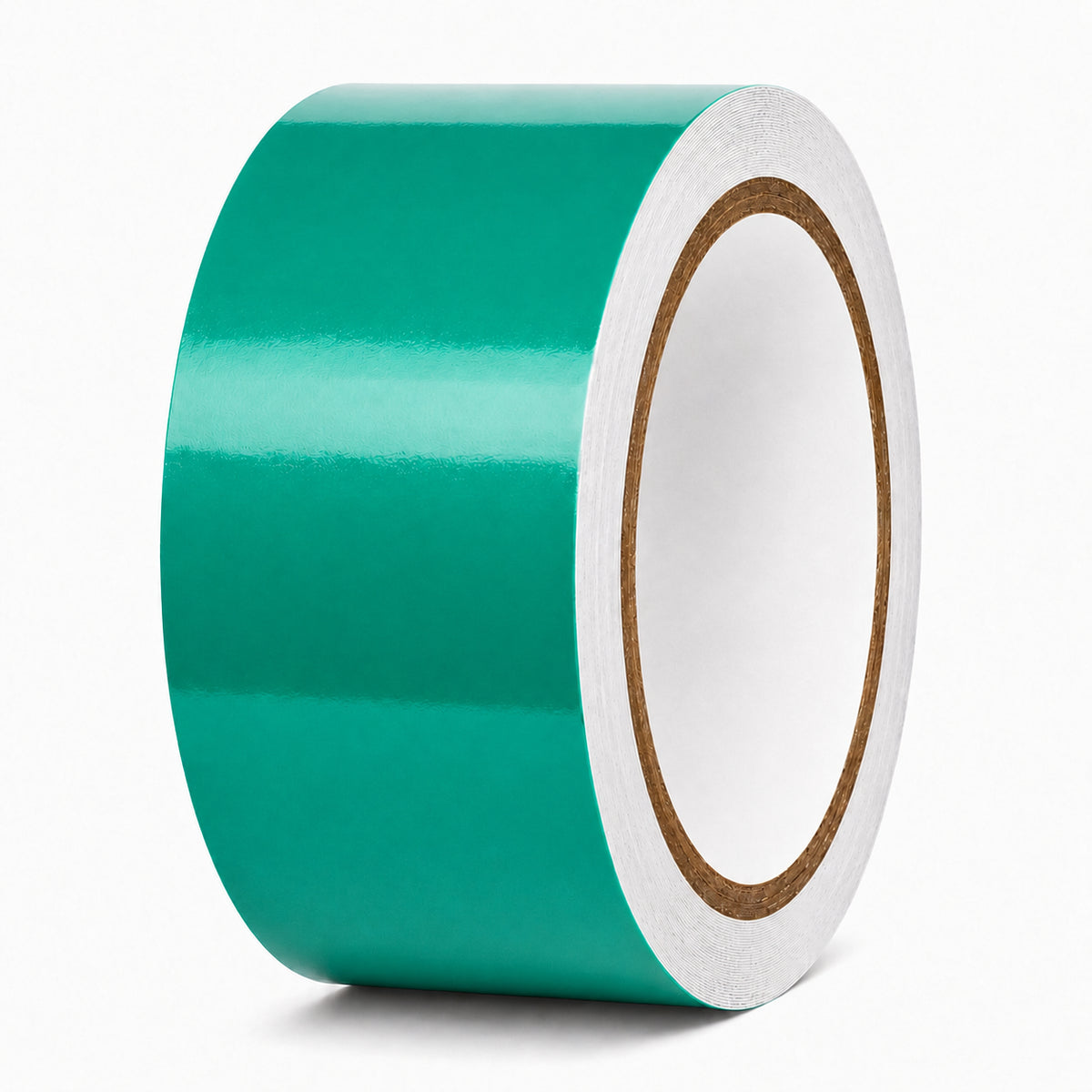

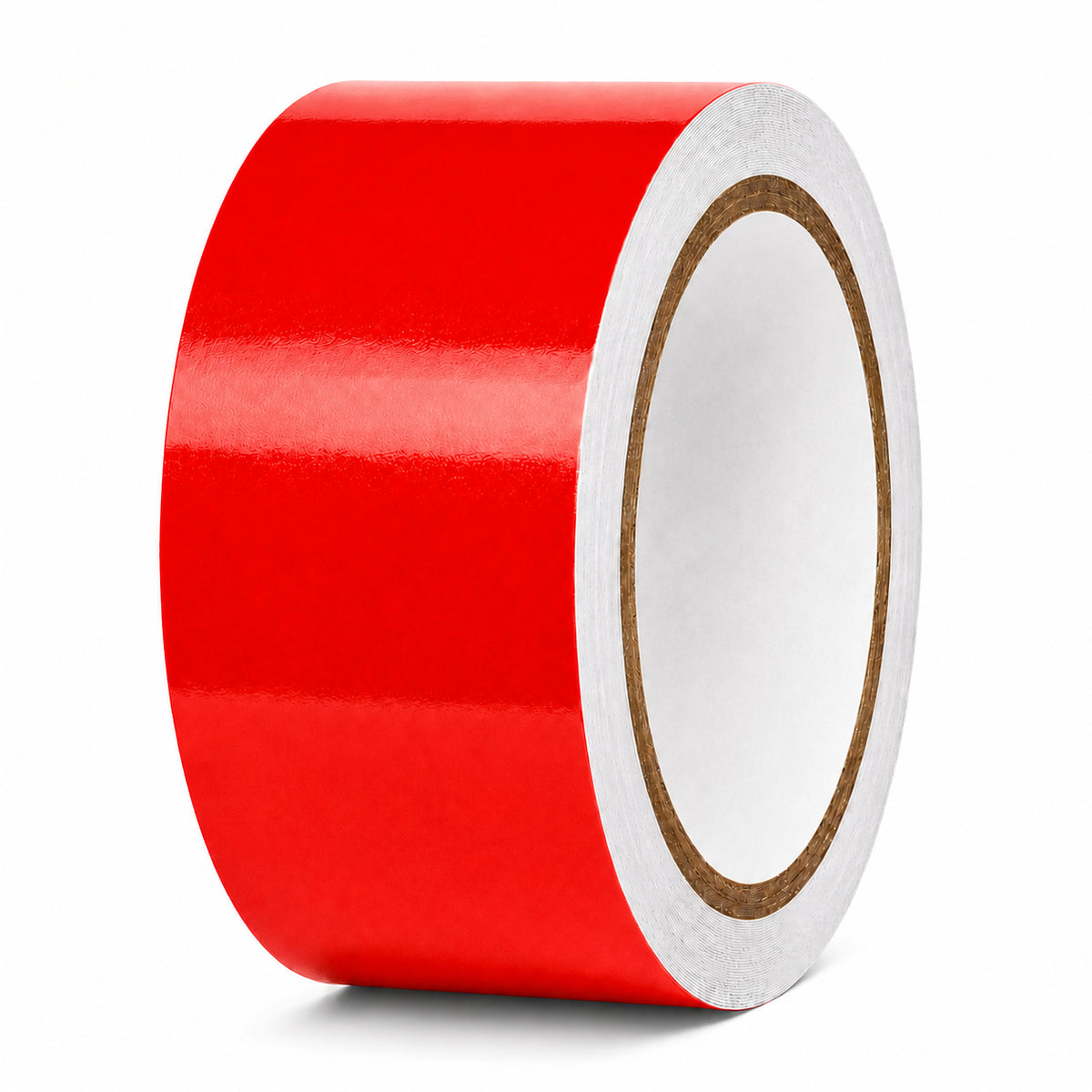

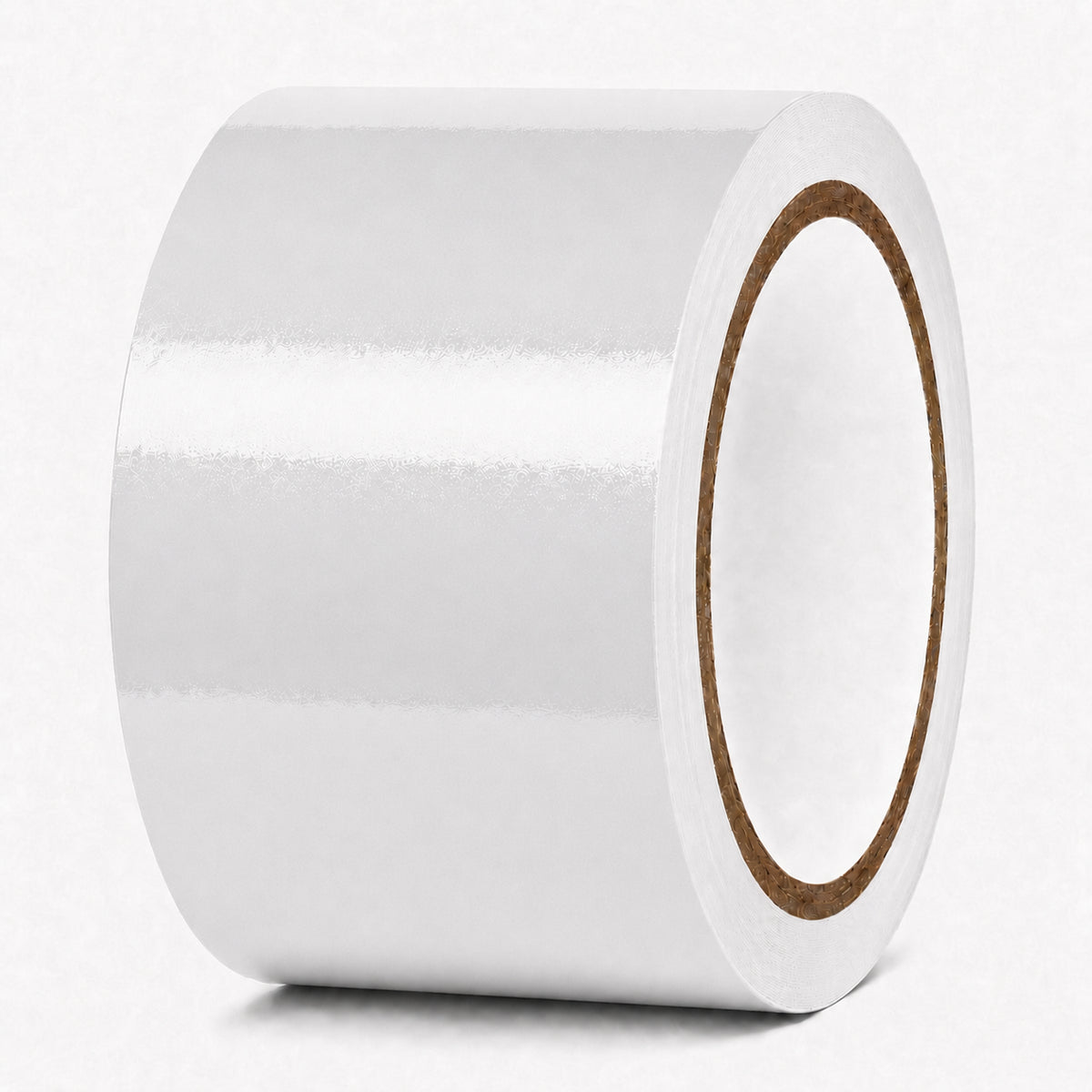

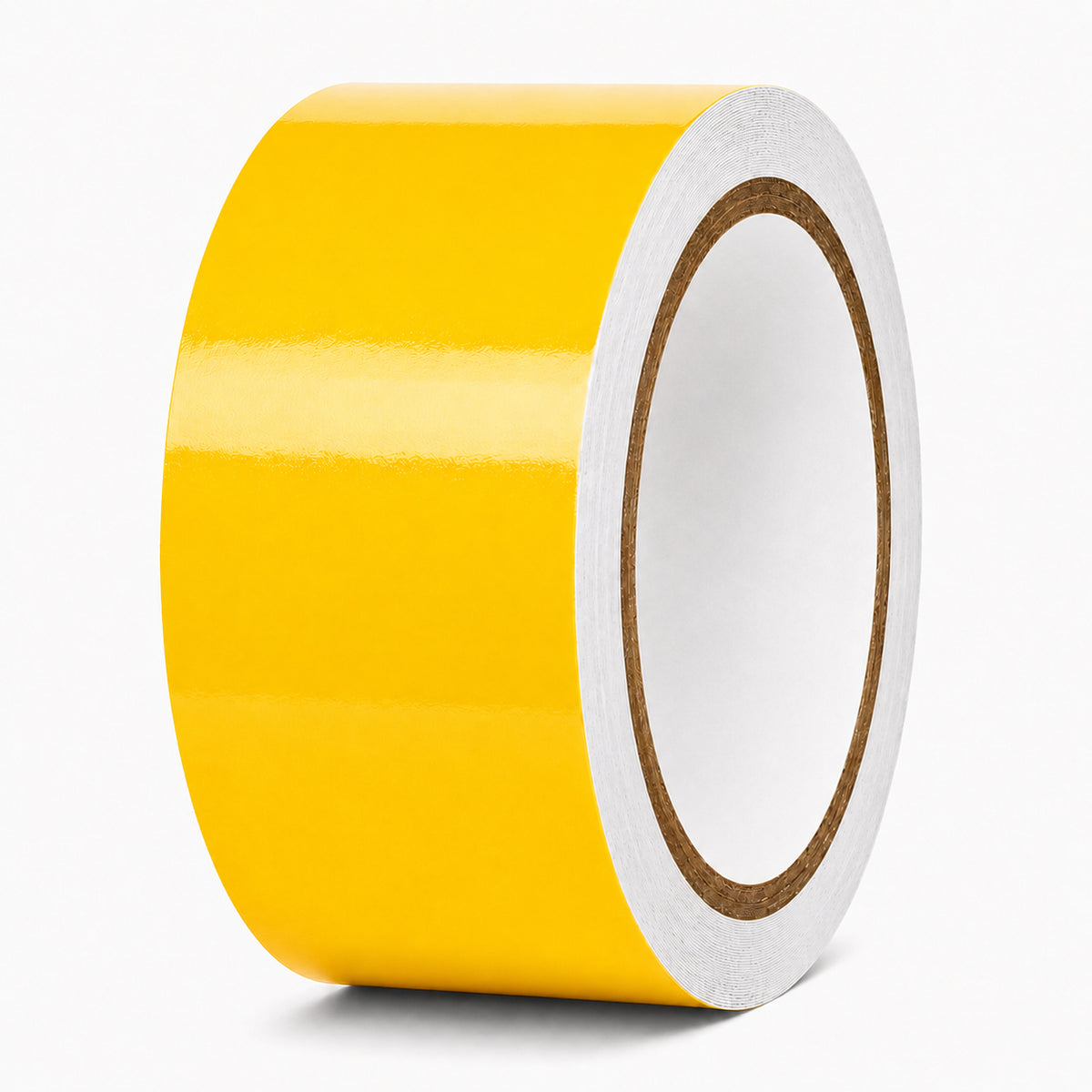

6 Colors available Silver/White - Yellow - Red - Green - Orange - Blue

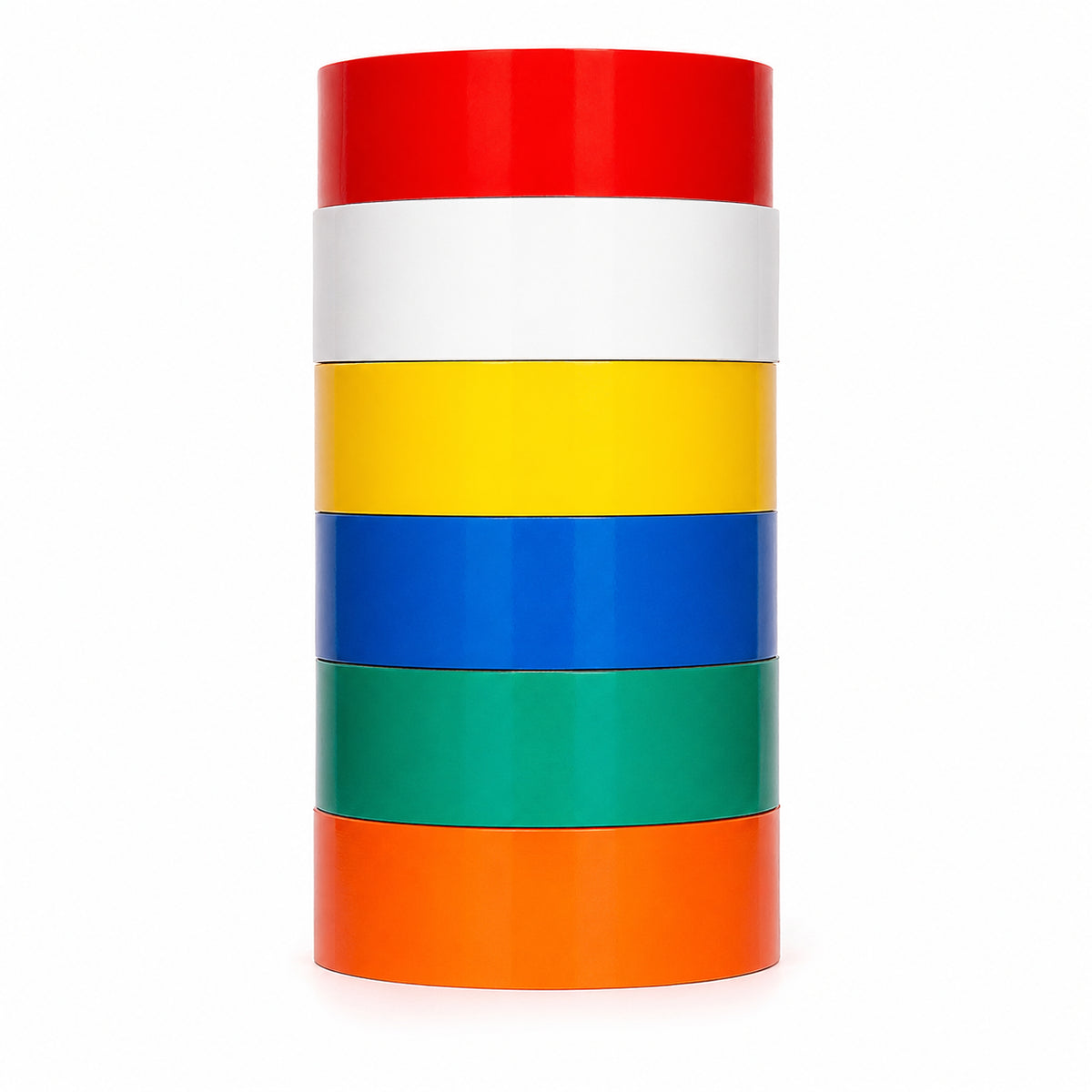

Rainbow Pack Carries
Silver/White - Yellow - Red - Green - Orange - Blue

Applications
Primarily designed for permanent and temporary traffic signage; also is used for safety applications and for the entertainment industry.

Properties
• Adhesive: Acrylic
• Carrier/Backing: Enclosed lens retroreflective urethane film
• Thickness: 5.5 mils (carrier + adhesive)
• Adhesion: 50 oz/in (to stainless steel test panel)
• Application Temperature: +40 F
• Service Temperature Range: -40 F to +180 F
• Application temperature range: 32 F to 140 F
• Dimensional Stability: Less than 0.02 in. (0.8mm) shrinkage (1000 hours Atlas Twin Arch Weatherometer, EH)
• Certifications: LS-300C (Reflectivty 1 Class 1), FP-85 (Type II), ASTM D4956-94 (Type 1)
• 3" neutral core/carton

Alternative to Avery T-1500 Series, Nippon/Carbide 8100 Series, 3M 3200 Series.

Note: Sizes will be the tape industry standard metric sizes, ex. 12mm for every 1/2 inch of nominal value tape width (Rolls are give or take 5% wider or narrower than the nominal size).
